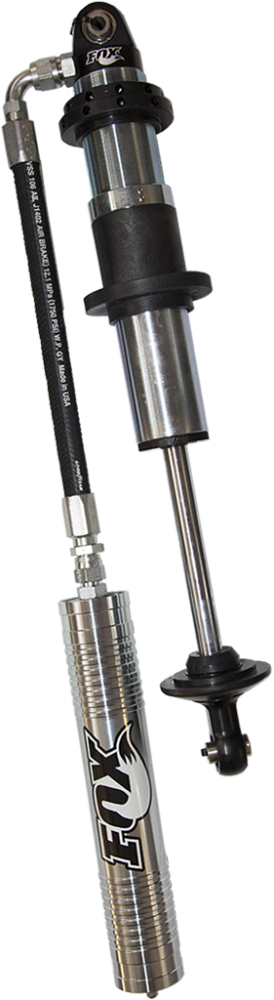

Fox 8.0 x Ø2.5 Coil Over R/Reservoir Factory Series Shock Absorber

Stock Code: 980-02-062-1

£643.15 inc VAT £535.96 ex VAT
Out Of Stock
Notify when back in stock
  • Packed With 35 Years Of Race Winning Technology
  • 100% Servicable And Tunable For Longer Lifespan
  • Zinc Plated Alloy Steel Body
  • 6061-T6 Aluminum Components
  • Made in the USA

**Special Internet Price**



From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year.

FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.

  • Shaft: 7/8'' (.875)
  • Finish: Black / Zinc
  • Ext. Length: 25.43"
  • Col. Length: 17.43"
  • Reservoir: 2.5 X 14.0
  • Hose: -10 X 18.0
  • Mounting: 1/2 X 1.500
  • Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
  • Black Anodized 6061-T6 Billet Aluminum
  • 7/8'' hard chrome plated stainless steel 17-4 H900 shaft
  • Race-developed high-flow piston design
  • Proprietary deburred valve shims
  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • Optional high temperature Viton seals
  • Specially formulated oil for ultimate performance at variable temperatures
  • Remote Reservoir
  • Optional 90 degree fittings
  • Custom hose lengths available
  • Fluoropolymer-lined, heat-treated, alloy steel spherical bearings 1/2'' Bolt x 1 1/4'' Wide
  • Optional Spacer x 1 1/2'' Wide

    •





    Spare Parts/Service Items

    Rebuild kit 803-00-022A
    Fox Ø2.5 Series Rebuild Kit (Seal Kit)
    £32.40 inc VAT £27.00 ex VAT
    Shaft Ø.875 x 13.455 TLG( 8" Travel)
    Shaft Ø.875 x 13.455 TLG( 8" Travel)
    £76.62 inc VAT £63.85 ex VAT
    Heim 2
    Ø2.5 Fox Heim Spherical Bearing: Ø5/8" ID (-10)
    £30.00 inc VAT £25.00 ex VAT
    Circlip large
    Fox Retaining Circlip 5/8" Spherical Bearing
    £2.40 inc VAT £2.00 ex VAT
    812-07-002A
    Fox Shaft Bearing: Ø2.5 x 7/8" Shaft - Shaft Bearing Assembly With Seals
    £79.14 inc VAT £65.95 ex VAT
    JM92 Oil (Quart)
    Fox JM92 Advanced Suspension Fluid 1 Quart
    £26.78 inc VAT £22.32 ex VAT
    JM92 Oil (Gallon)
    Fox JM92 Advanced Suspension Fluid 1 US Gallon
    £68.34 inc VAT £56.95 ex VAT
    Platform retainer 2.5 colletts
    Spring Hardware: Ø2.5 Spring Retainer Clip (2 required)
    £10.80 inc VAT £9.00 ex VAT
    234-00-032-A Spring retainer standard
    Spring Hardware: Ø2.5 Retainer 3" ID Spring, Black Std Length
    £25.14 inc VAT £20.95 ex VAT
    008-02-002A Bumpstop
    Bumpstop: 7/8" Shaft, 0.600" Long
    £5.40 inc VAT £4.50 ex VAT
    213-01-235A Eyelet 2.5 standard
    Fox Eyelet Ø2.5 7/8" Coil Over Standard, 3.895 " Total Length
    £54.00 inc VAT £45.00 ex VAT
